Managing Microsoft Sentinel table retention and tiers is typically done through scripts or the portal, but neither approach is ideal for an infrastructure-as-code workflow. While exploring the Log Analytics resource provider, I came across the Microsoft.OperationalInsights/workspaces/tables resource type1, which makes it possible to manage table tier and retention declaratively with Bicep.

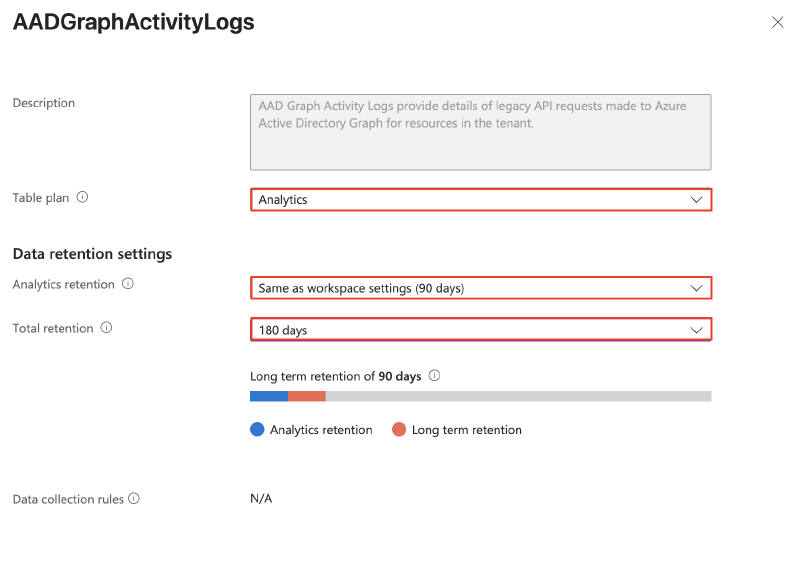

For each table we typically want to control:
- Table tier: Analytics or Data Lake (Auxiliary)
- Interactive retention: applies to Analytics tables
- Total retention: the overall retention period of the table
Furthermore, managing the total table retention is necessary if you want to retain logs longer than the 90-day default, e.g. to meet your logging or compliance policy requirements. As a default for the total retention cannot be set on the workspace itself, it needs to be done for each table.
Identify tables with recent ingestion#
To identify ‘active’ tables, both a KQL- and API-based approach exist.
KQL#

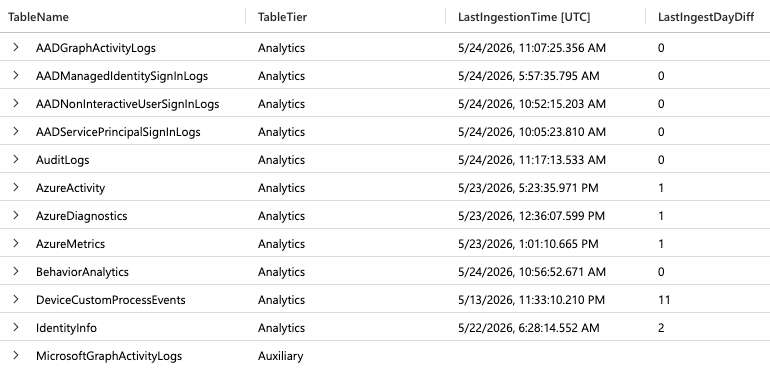

The following KQL query lists tables that have received data in the last 90 days along with their current tier, which is helpful when deciding what to put under Bicep management:
let LookBack = 90d;
let LastTableIngest =
union withsource= _TableName *
| where TimeGenerated > ago(LookBack)
| summarize LastIngestionTime = arg_max(ingestion_time(), TimeGenerated) by _TableName
| extend LastIngestDayDiff = datetime_diff('day', now(), LastIngestionTime)
| project _TableName, LastIngestionTime, LastIngestDayDiff;
Usage
| where TimeGenerated > ago(LookBack)
| project-rename _TableName = DataType, TableTier = Plan
| where isnotempty(TableTier)
| summarize arg_max(TimeGenerated, TableTier) by _TableName
| project _TableName, TableTier
| join kind=fullouter LastTableIngest on _TableName
| extend TableName = coalesce(_TableName, _TableName1)
| project TableName, TableTier, LastIngestionTime, LastIngestDayDiff
| sort by TableName asc
For Auxiliary / Data Lake tables the last ingest is not displayed, as union withsource does not mix Analytics and Auxiliary tables.
PowerShell and ARM API#
The Azure Resource Manager (ARM) API provides a complete list of tables, including default tables. With the snippet below you can directly export the configuration in Bicep format, which will facilitate the next step of declaring the desired retention:
# Snippet to Convert Sentinel / Log Analytics Table Retention settings to a Bicep configuration format
$rg = '<your-resource-group-name>'
$workspace = '<your-workspace-name>'
Connect-AzAccount -Tenant '<your-tenant-id>'
$tableRequest = Invoke-AzRestMethod -Uri ('https://management.azure.com/subscriptions/{0}/resourceGroups/{1}/providers/Microsoft.OperationalInsights/workspaces/{2}/tables?api-version=2025-07-01' -f (Get-AzContext).Subscription.Id, $rg, $workspace)
if ($tableRequest.StatusCode -ne 200) {
throw "Failed to retrieve tables: $($tableRequest.Content)"
}
$tables = $tableRequest | Select-Object -ExpandProperty Content| ConvertFrom-Json | Select-Object -ExpandProperty value
$bicepConfig = $tables | Where-Object { $_.properties.provisioningState -eq 'Succeeded' } | Sort-Object {$_.name} | ForEach-Object {
Write-Output ("$($_.name): {
totalRetentionDays: $($_.properties.totalRetentionInDays)
retentionInDays: $($_.properties.retentionInDays)
plan: '$($_.properties.plan)'
}")
}
$bicepConfig | Out-File -FilePath 'bicepTableConfig.txt' -Encoding utf8example output:
AACAudit: {
totalRetentionDays: 90
retentionInDays: 90
plan: 'Analytics'
}
AACHttpRequest: {
totalRetentionDays: 90
retentionInDays: 90
plan: 'Analytics'
}
AADAgentRiskEvents: {
totalRetentionDays: 90
retentionInDays: 90
plan: 'Analytics'
}Default tables that have never ingested still appear in the list, therefore the ARM export will emit a lot of noise, so you might want to combine this with the KQL approach.
Declaring the Desired Retention#
We can now declare the desired tier and retention per table in Bicep. I have included examples for different table and retention types to illustrate how easy this works by defining them in a map structure:
// Bicep Configuration Example for Sentinel and Log Analytics Tables
@description('The name of the Log Analytics workspace hosting the tables.')
param workspaceName string = 'law-sentinel-chn-prod-01'
@description('Default total retention in days applied to most tables.')
var totalRetentionDays = 180
// Interactive retention for Analytics tables. -1 means inherit the workspace default.
@description('Default interactive retention in days for Analytics tables.')
var retentionInDays = -1
// Per-table retention configuration. Tables used for long-term KPIs and
// investigations get an extended retention period.
var TableRetentionSettings = {
DeviceInfo: {
totalRetentionDays: 720
retentionInDays: retentionInDays
plan: 'Auxiliary'
}
SigninLogs: {
totalRetentionDays: totalRetentionDays
retentionInDays: retentionInDays
plan: 'Analytics'
}
UbiquitiLogs_CL: {
totalRetentionDays: totalRetentionDays
retentionInDays: retentionInDays
plan: 'Analytics'
}
MicrosoftGraphActivityLogs: {
totalRetentionDays: totalRetentionDays
retentionInDays: retentionInDays
plan: 'Auxiliary'
}
// Special config for interactive 'hot' retention
SecurityAlert: {
totalRetentionDays: 720
retentionInDays: 720
plan: 'Analytics'
}
SecurityIncident: {
totalRetentionDays: 720
retentionInDays: 720
plan: 'Analytics'
}
AlertEvidence: {
totalRetentionDays: 720
retentionInDays: 720
plan: 'Analytics'
}
}
resource workspace 'Microsoft.OperationalInsights/workspaces@2025-07-01' existing = {
name: workspaceName
}
// foreach loop to iterate over all map entries
resource workspaceName_table 'Microsoft.OperationalInsights/workspaces/tables@2025-07-01' = [
for table in items(TableRetentionSettings): {
parent: workspace
name: table.key
properties: {
plan: table.value.plan
totalRetentionInDays: table.value.totalRetentionDays
retentionInDays: table.value.retentionInDays
}
}
]Now we can deploy the template with the Azure CLI towards our Sentinel Resource Group:
az deployment group create \
--resource-group 'rg-siem-chn-prod-01' \
--template-file 'TableRetention.bicep'- Some Microsoft-managed tables reject plan changes.
- Long-term retention beyond 90 days is billed for Analytics tables2.
- Optionally, you can also use the
az deployment group what-ifoption to preview changes.
Why this matters#
Managing table tier and retention through Bicep keeps the table configuration version-controlled, reviewable, and reproducible across environments. In my opinion a much cleaner process than ad-hoc scripts or portal clicks. For more seasoned Bicep environments, the retention configuration could also be stored in a separate parameters file to keep the actual Bicep code clean.
It is also worth noting that Microsoft has softened the guidance shown in the Azure portal. Earlier wording strongly steered toward managing tables in Defender XDR once the data lake was enabled; the current hint is more permissive:
Microsoft learn - Microsoft.OperationalInsights/workspaces/tables (https://learn.microsoft.com/en-us/azure/templates/microsoft.operationalinsights/workspaces/tables?pivots=deployment-language-bicep) ↩︎
Microsoft learn - Sentinel Interactive and total data retention costs (https://learn.microsoft.com/en-us/azure/sentinel/billing?tabs=simplified%2Ccommitment-tiers#interactive-and-total-data-retention-costs) ↩︎
